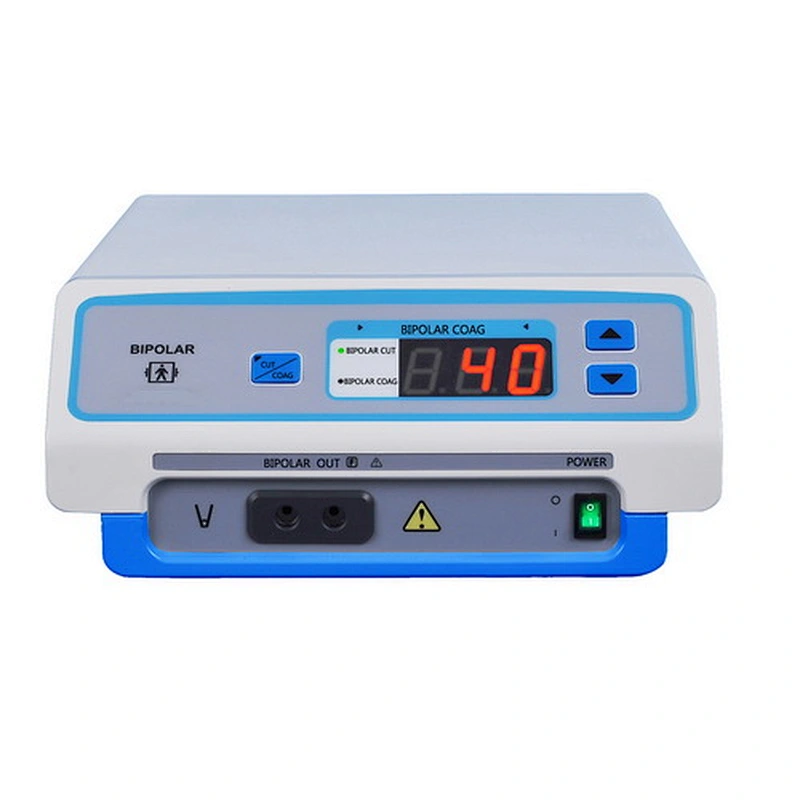

Surgical Electric Bipolar Coagulator

Specifications

Max Power: 120WApplication: GYN, Others, General Surgery, Thoracic Surgery, Orthopedic Surgery, Cardiology, Urology, Oncology, Neurosurgery

Main Description:
1. Deep hemostasis, foot control outputs, mild hemostasis.
2. According to the depth of hemostasis, the output mode stops automatically. The output power will not reduce when operating in dry and bleeding spot.
3. Foot control mode: When the tissue reach the coagulation effects, the output power declines slowly.
4. Auto mode: when the tissue or blood vessel was coagulated, output power drops off sharply, to keep the forceps from sticking and over burnt for tissues.
5.Low voltage effectively reduces forming of the sparking of forceps, stimulating for the neuromuscular, to increase the security.
6. Microcontroller system allows this unit can be used in many delicate surgery
7. Bipolar cut: macro bipolar.

Technical Parameters:
Two working modes: bipolar coag, bipolar cut
Power: 220V±22V(110V±11V) 50Hz±1Hz
Working frequency: 1024KHz


Output power:
1) bipolar coag: 0-120W(load 100Ω)
2) bipolar cut: 0-120W(load 200Ω)


Configuration Sheet:

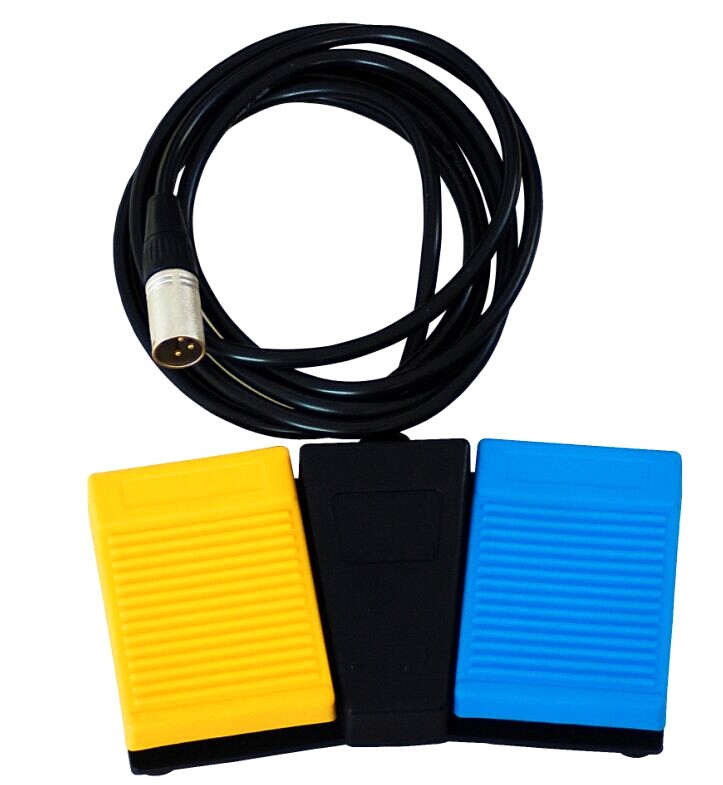

Footswitch, 1set

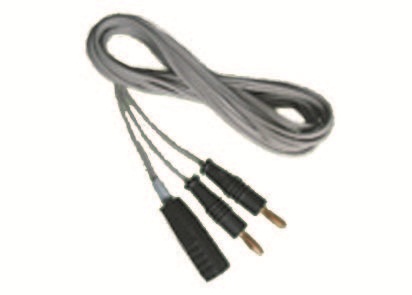

None sticky bipolar Forceps and cable, 1set




Optional:
The function of bipolar cut and bipolar cut pencil, pen type bipolar coagulation.
