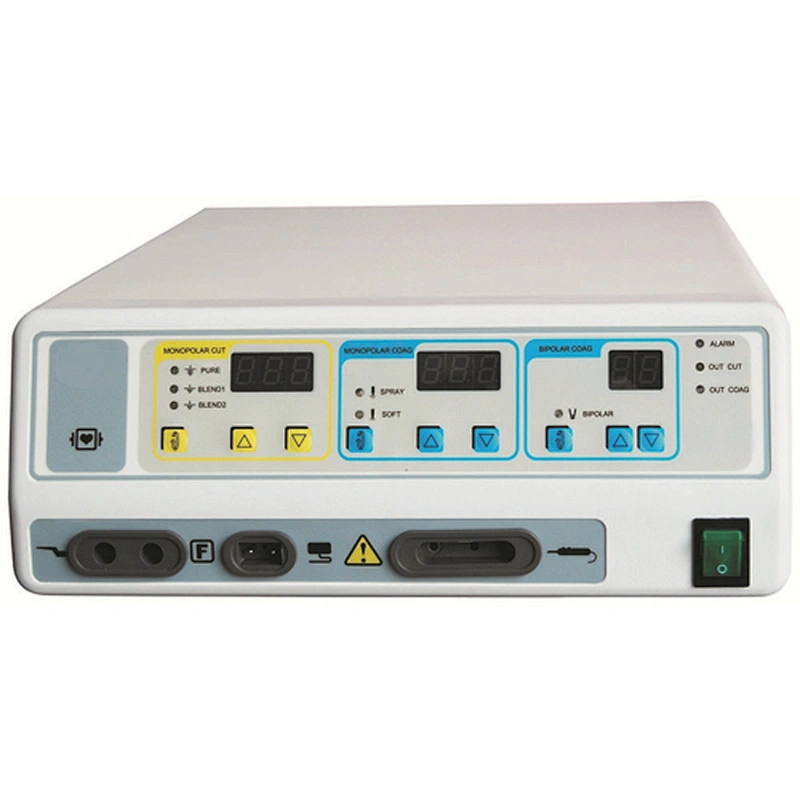

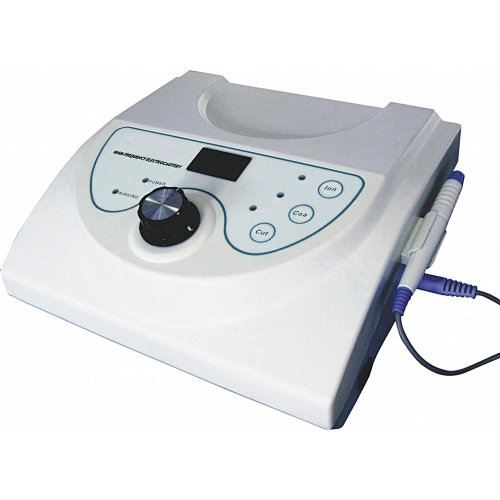

Six Working Models Electrosurgical Generator Electrosurgical Unit Diathermy Machine

Specifications

Max Power: 350W

Application: GYN, Others, General Surgery, Thoracic Surgery, Orthopedic Surgery, Cardiology, Urology, Oncology, Neurosurgery

Main Features

★ Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
★ Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.
★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery,
cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
★ Microprocessor controlled, digital display. With audible and visual indicators and errors codes
during the process of outputting.
★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue
damage.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut
and bipolar coag, each output can be individually configured.
★ The unit always remember the last setting when it turned off.
★ Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
★ The ESU unit can be connected with laparoscope and endoscope, etc.
★ Protection against over-voltage and over-current.
★ Defibrillation protected.
★ Mounted on a 4 wheels cart(optional).
★ Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: 512KHz
Power rating: 1100VA±10％ Six working modes:
◆Mono-polar Cut
a) Pure cut：1W～350W( Load 800Ω) b) Blend1：1W～200W(Load 800Ω) c) Blend2：1W～250W(Load 800Ω) ◆Mono-polar Coag
d) Spray Coag：1W～80W( Load 800Ω) e) Soft Coag：1W～120W( Load 800Ω) ◆Bipolar
f) Bipolar Coagulation: 1W～70W( Load 200Ω) ◆Power Consumption: ≤1100VA

Configuration Sheet

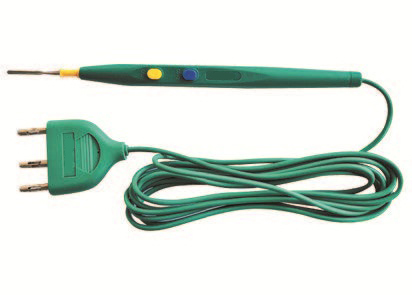

Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs

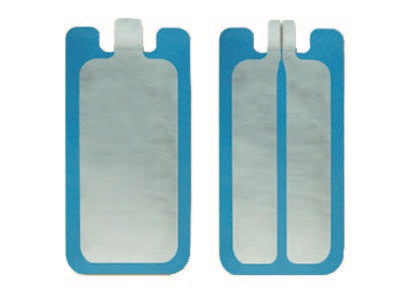

Electrosurgical pad

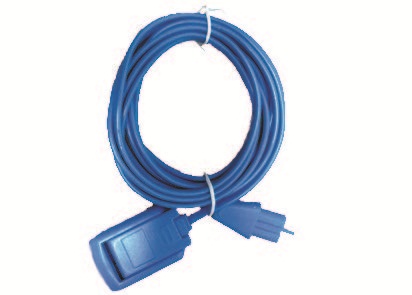

Electrosurgical pad cable

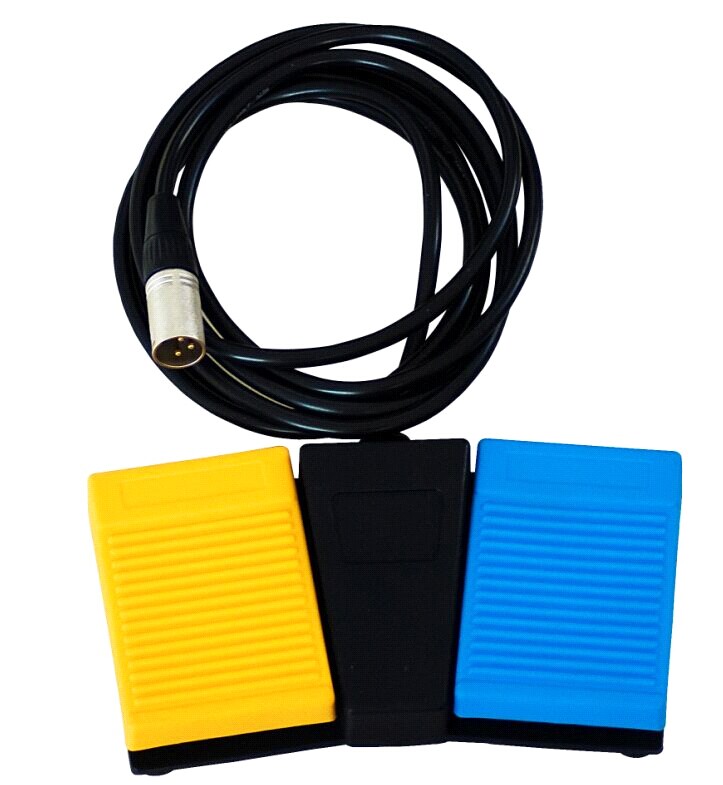

Foot switch

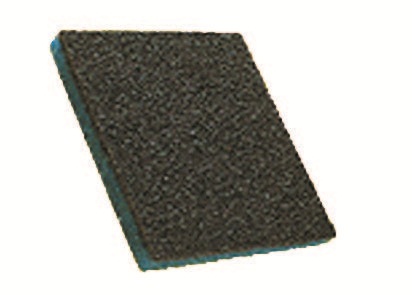

Tip clean sponge

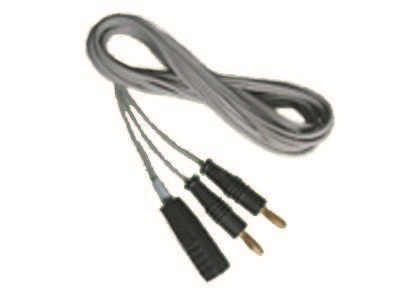

Bipolar forceps and its cable
