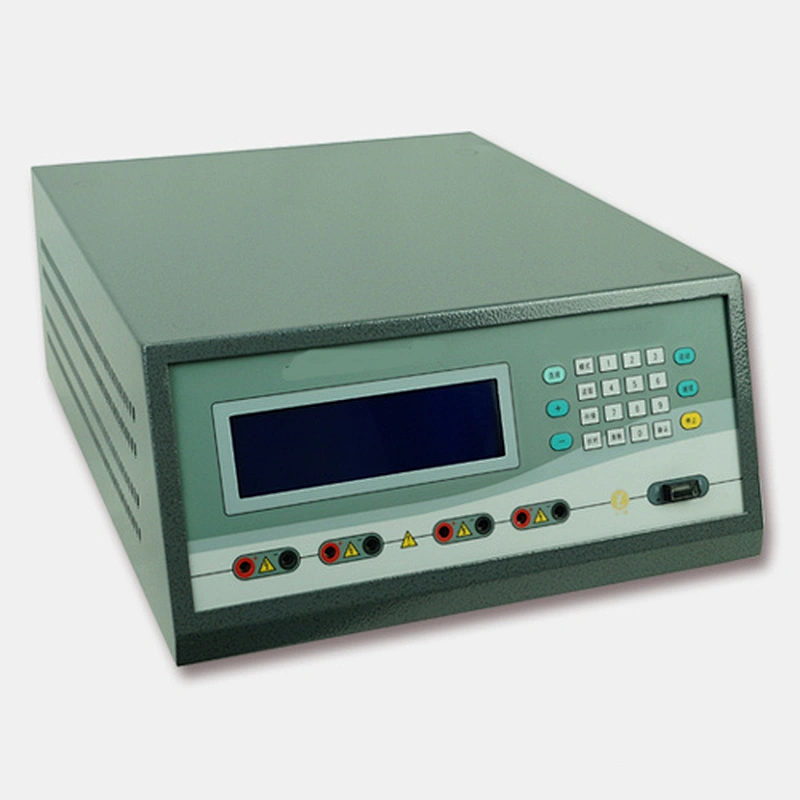

Electrophoresis Power Supply

Electrophoresis Power Supply

Specifications:

Device: Electrophoresis Power

Application: DNA sequencing, Differential Display, AFLP, SSCP Research, Oligonucleotide Analysis

Features:

■It is wholly controlled by micro-computer, LCD;
■ High-power ON/OFF switch is the output

high output power,high capability of load,high precision of control and the high stability of the function
■ The states of constant voltage,constant electric current and constant power can be converted into one another to ensure the safety
■ It has the protection functions of over voltage,short circuit,overload,sudden load change,unloaded,leaks electricity,etc
■ It has the function of memory for convenient use and programming with a minimum of time and effort
■ Program:up to 9 different programs, each with 9 steps
■ Output terminals: 4 pairs in parallel

Application:

DNA, RNA, Protein, Agarose, DNA sequencing, Isoelectric focusing, Western blotting, Semi-dry blotting,2-dimensional electrophoresis

Specifications:

■Power source: A.C. 220V±10% (50Hz±2%)
■ Input power :about 600 VA
■ Output voltage: (10 -3000)V, (Increase or decrease: 1V/step)
■ Output current: (4 -400)mA, (Increase or decrease: 1mA/step)
■ Output power: (4 – 400)W, (Increase or decrease: 1W/step)
■ Size(W x D x H): 303 x 364 x 137 (mm)
■ Weight: about 7.5 kgs.
