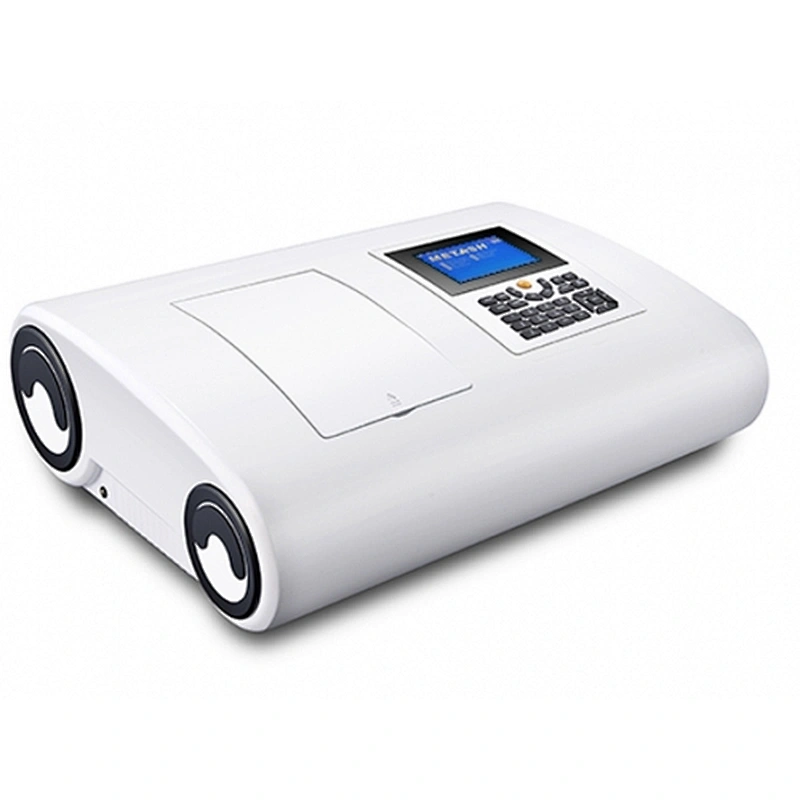

Double Beam UV/VIS Spectrophotometer
Double Beam UV/VIS Spectrophotometer

Double Beam UV/VIS Spectrophotometer

Model NO.
WSL-9000S
Price:
US $ 6529.00-6599.00
Quantity:

Double Beam UV/VIS Spectrophotometer

Specifications

It is wide screen double beam spectrophotometer.They adopt double beam long light path design to ensure the stability and accuracy; They are the best choice of high quality spectrophotometers.

Features
Light path design: double beam
CCL-9000S series’ double light path design can prevent circuit fluctuation and stray light to ensure stability of the instrument.
Powerful software functions
Multi functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning,DNA/Protein testing can be operated directly on the pc.
Long path light design
CCL-9000S series’ unique 520mm long light path design greatly improved resolution and the bandwidth can reach 0.5nm.
Multi functions on Spectrophotometer
Multi functions operated directly on the spectrophotometer and display the test results’ curve and data: wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/Ptotein test.
16mm optical base
CCL-9000S series use a rigid 16mm diecast aluminim base as their optical mount to ensure the stability and reliability.
Perfect calibration system
All baseline, wavelength ,dark current can be calibrated automatically to keep good running conditions.
6 inches LCD display
CCL-9000S series have a 6 inches LCD display to show results and curves directly on the screen.
Data output
CCL-9000S series are equipped with USB port to connect with a PC, the softwore comes standard with the instrument.

Specifications

Model

CCL-9000S

Optical System

Double Beam(1200 Lines/mm Grating)

Wavelength Range

190-1100nm

Bandwidth

0.5,1.0,2.0,4.0

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

0.2nm

Photometric Accuracy

±0.3%T

Photometric Repeatability

0.2%T

Photometric Range

-0.3-3A

0-200%T

0-9999C

Stability

± 0.001A/h @ 500nm

Baseline Flatness

± 0.001A/h

Noise

± 0.001A/h

Stray Light

≤0.05%T @ 220nm,360nm

Data Output Port

USB

Printer Port

Parallel Port

Display

320*240 Dots LCD

Lamps

D2 Lamp & W Lamp

Detector

Silicon Photodiode

Power Requirements

AC 220V/50Hz or 110V/60Hz

Dimension

625*430*206mm

Weight

32kg
