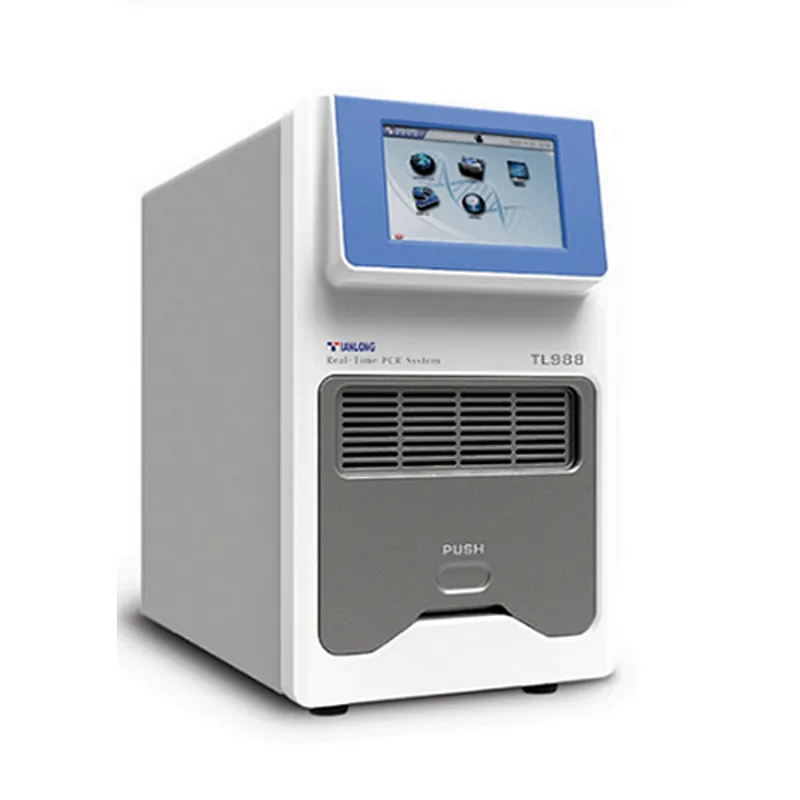

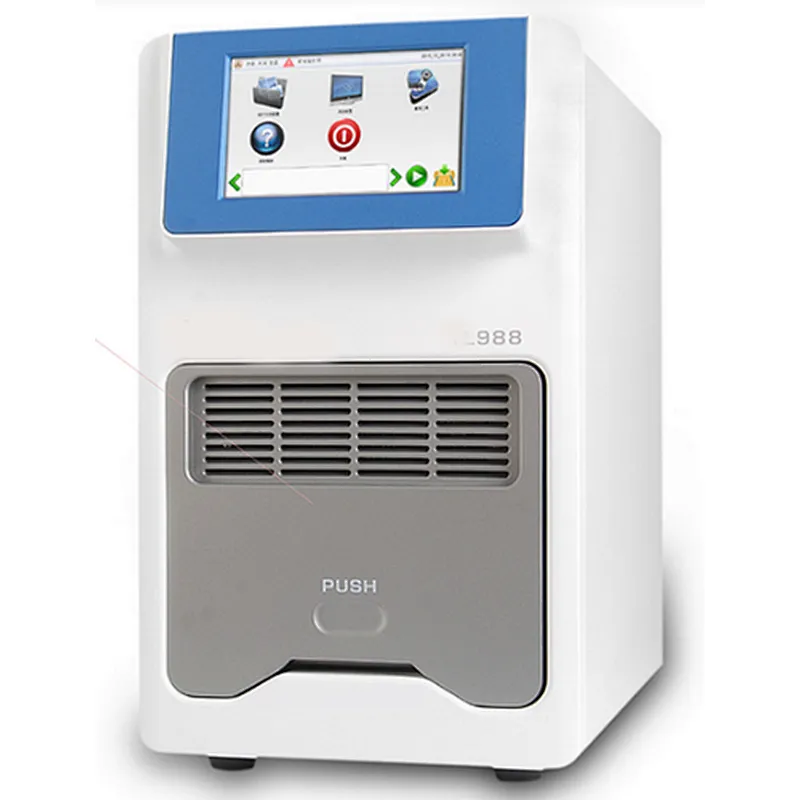

CCL-988IV 96-wells Real-time Quantitative PCR Detection System

CCL-988IV 96-wells Real-time Quantitative PCR Detection System

Specifications

Real Time: Real Time Type

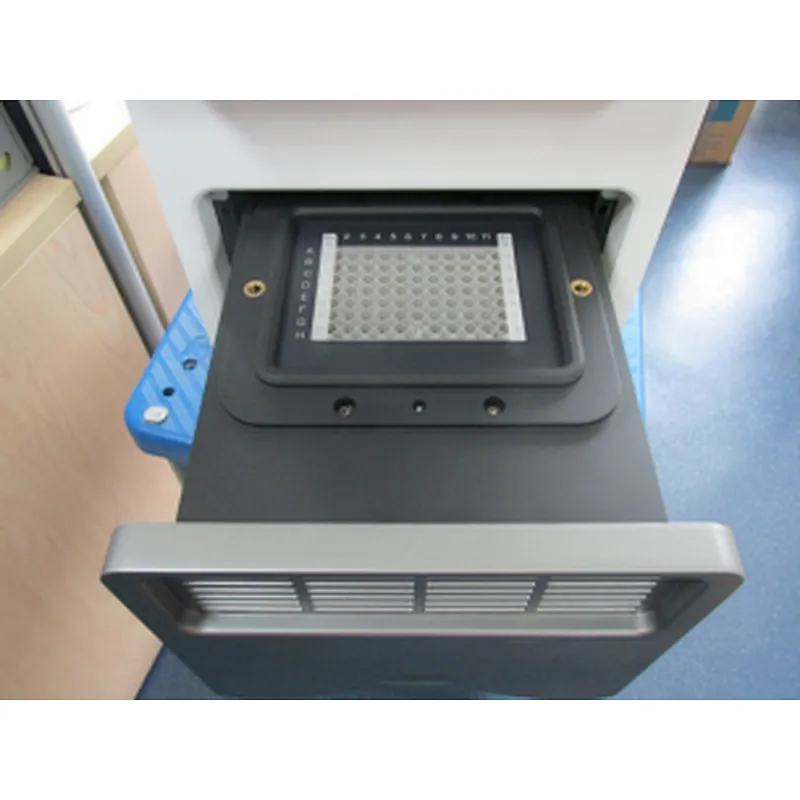

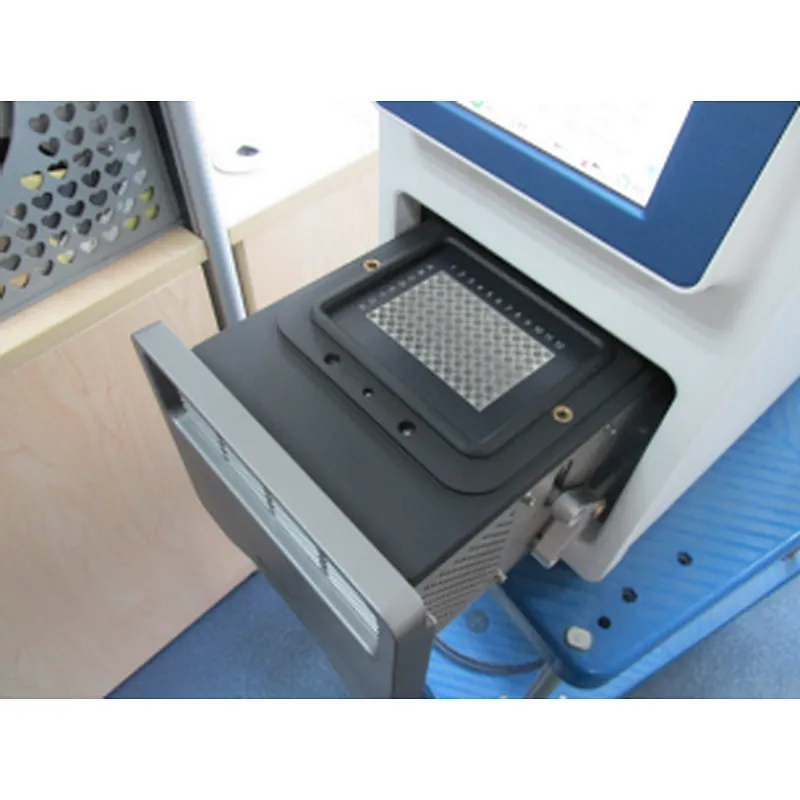

Thermal Block
Block formats 96-well
Sample volume 5–50 μL
Consumables 0.1ml 96-well unskirted Plates; 0.1ml 8-strip tubes (Optical flat cap)
Max heating/cooling rate 4.2°C/sec
Temperature range 4.0–99.0°C
Temperature accuracy ≤±0.1℃
Temperature uniformity ≤ ±0.3°C
Temperature steps 1-99

Heated lid
Temperature range 100–120°C
Control Automatic temperature and pressure setting Optics
Excitation 4 LEDs
Excitation range 470–630 nm
Detector Photodiode
Detection range 525–670 nm

Detection channels:
Channel Excitation (nm) Emission (nm) Pre-Calibrated Dyes
1. 470 525 FAM, SYBR Green I
2. 523 564 VIC, HEX, TET, JOE
3. 571 621 ROX, TEXAS-RED
4. 630 670 CY5
Multiplex Up to 4 targets
Detection range 101-1010 copies

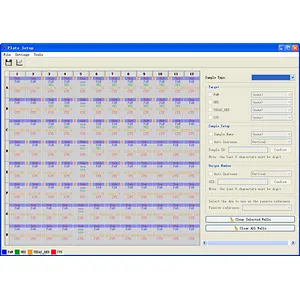

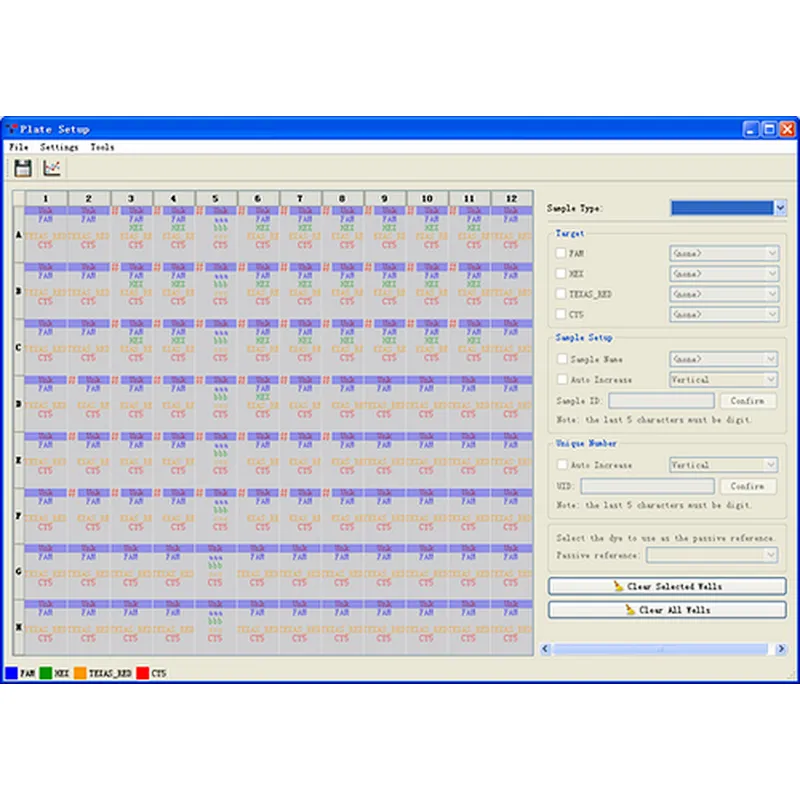

Software
Analysis modes: Absolute quantification, Relative quantification,
Melt curve analysis, High Resolution Melting
Performance
Reproducibility CV≤2.1％
Correlation coefficient of nucleic acid precision R≥0.997

System
Operating systems Windows XP
Communication Ethernet or USB
Power usage AC220 × (1±10%)V, 50 × (1±2%)Hz
Dimensions 540W×300D×480H mm
Weight 35kg
