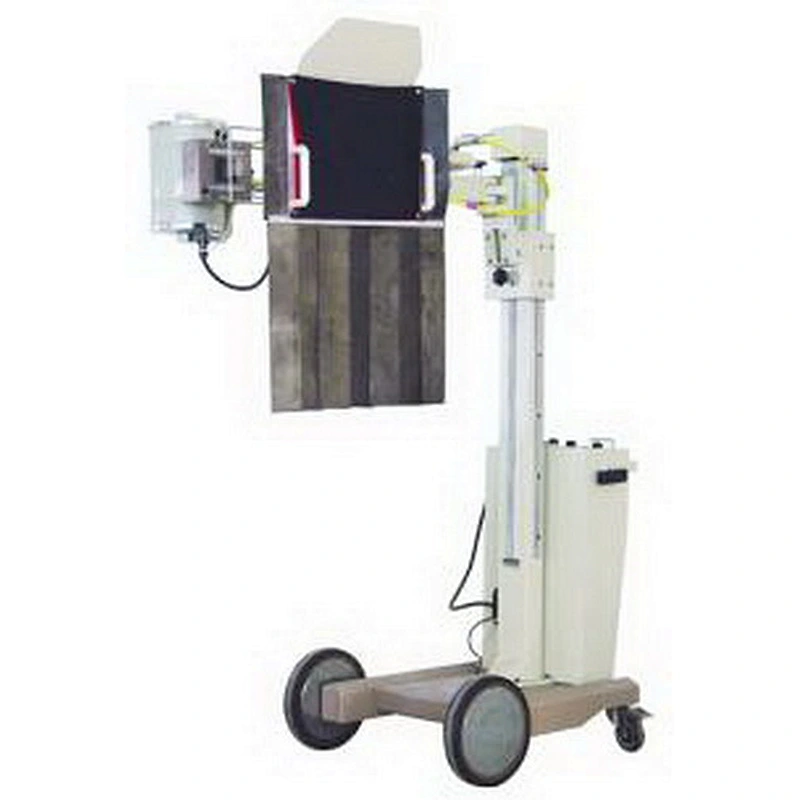

50mA Mobile X-ray unit for Fluoroscopy and Radiography

50mA Mobile X-ray unit for Fluoroscopy and Radiography

Feature:

-----------------------------------------------------------

MA:50ma

Type:Portable/Movable

1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.

2.X-ray generator is combined.

3.Single focus, bridge rectification.

4. It is precise, safe, reliable and flexible.

5. Remote control device (control range≥5 m) is used.

Main technical parameter:

-----------------------------------------------------------

X-ray generatorStationary anode, single focus, and bridge silicon

rectification, The X-ray generator is an oil-immersed self-cooled unit.

Max rated capabilityFluoroscopy75kVp，3mA

Radiography90kVp，50mA

Power supplyVoltage180～240V

Frequency50Hz

Powernot lower than 3.5kVA

Resistancenot larger than 1Ω

Voltage adjustment range

of x-ray tube45～90kVp (divided into 10 steps)

Range of the timer0.08～6.3 s

Fluorescent screen size280mm×350mm

Distance between the focus

to the screen620mm

Tube head carriage

movement range(vertical): 950 mm

(horizontal): 160 mm

X-ray tube focus transverse

rotation±60°

Specification of X-ray tubeXD3-3.5/100,Stationary anode, single focus 2.6mm

Transport dimension，Weight1175×870×2050(mm),(NET)150kg/(GROSS)244kg

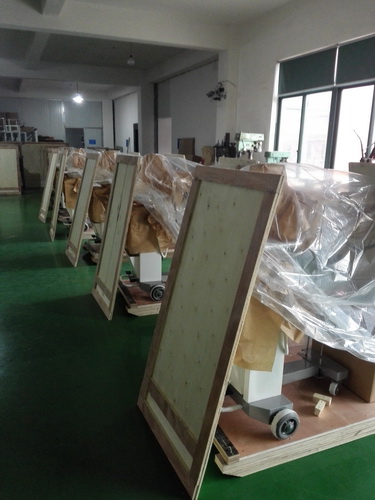

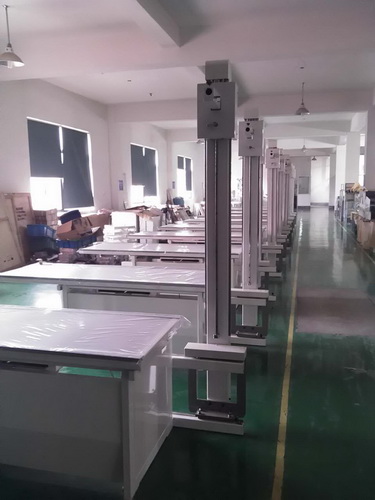

Foctory Show

-----------------------------------------------------------
